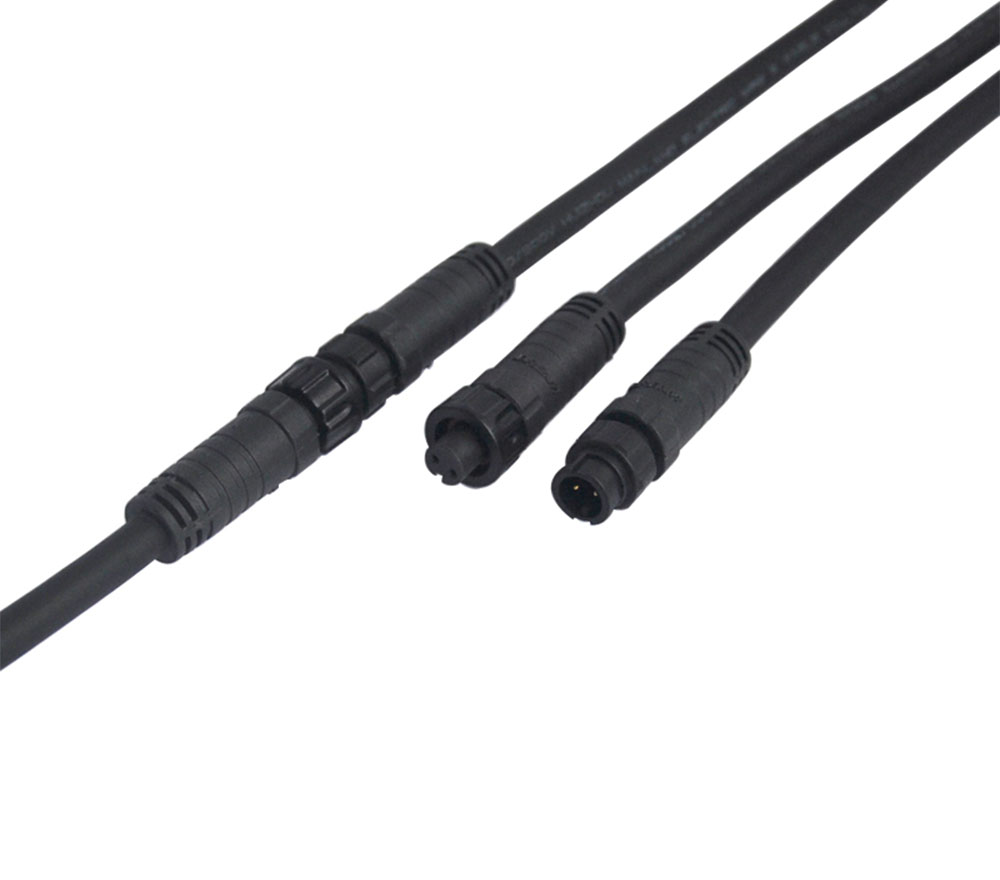

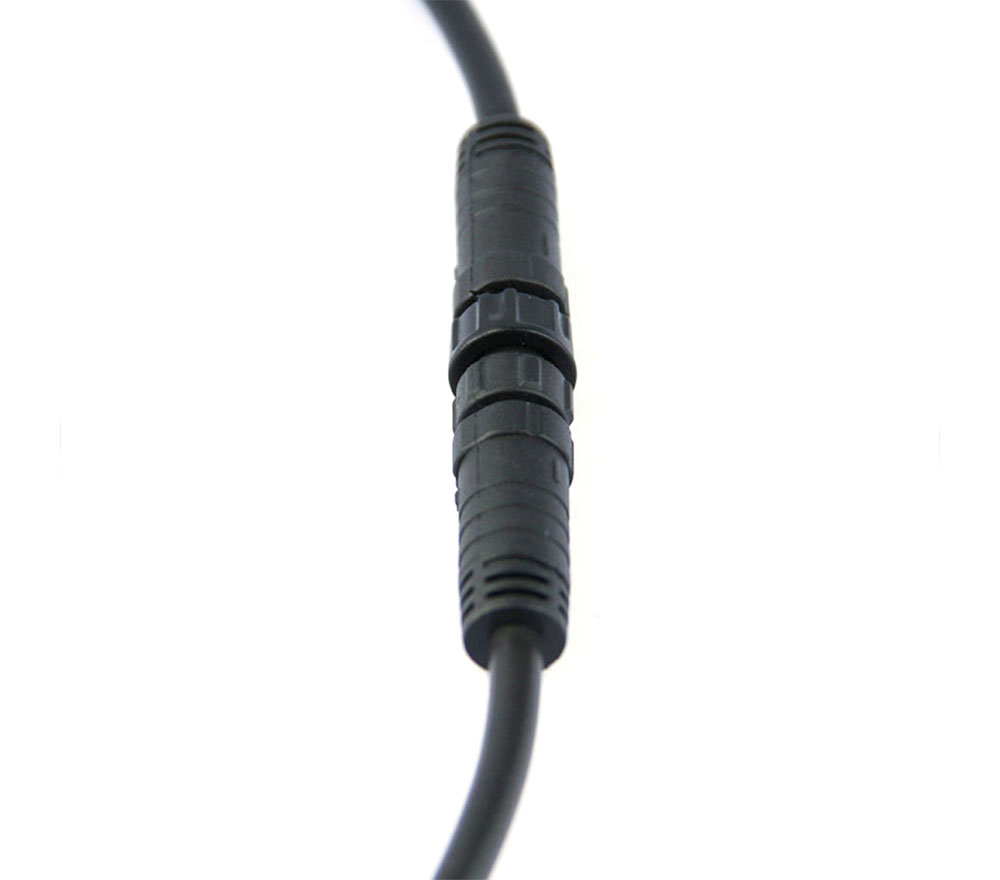

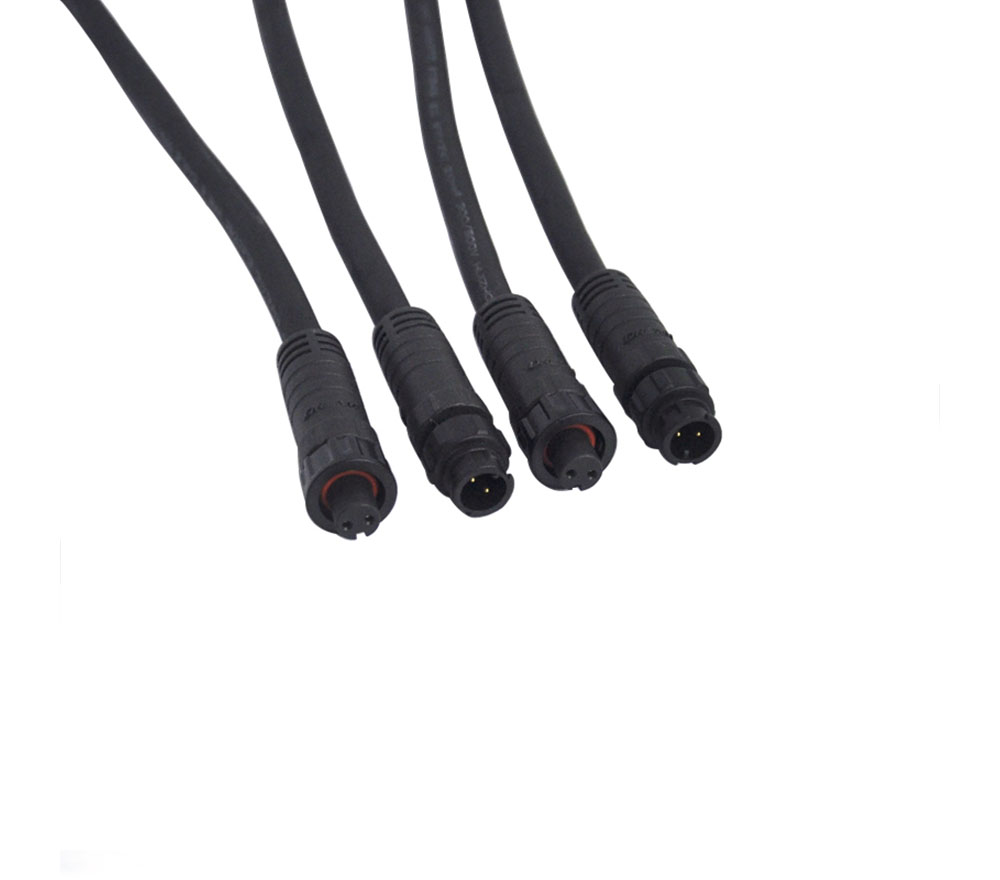

■ Quick lock docking assembly, simple to use and convenient installation;

■ Integrating current and signal transmission in one of the multifunctional intergrated circular connector;

■ The material of products in nylon fiber greatly improves product durability and safety;

■ The pins with gold-plated ensure the conducting performance's stability and security;

■ The male plug can match the product DR-T06 of our company;

■ Mainly used in street lamp module cables and other cables .

機械性能(Mechanical Property)
產品尺寸(Size)	公頭(Male)	母頭(Female)		成品(F1n1shed Product)
	φ35*44mm	φ43*42 8mm		φ
接觸對數(Contact Cores)	2Pin	3Pin	4Pin	5Pin
公針直徑(Male Pin Diameter)	φ1.5mm	φ1.0mm		φ0.8mm
公針材質(Male P in Material)	銅／銅合金（令度金／鍛鏢） Copper/Copper Alloy (Gold Plating/ Nickel Plating)
母針材質(Male Pin Material)	銅／銅合金（令度金／鍛課） Copper/Copper Alloy (Gold Plating/ Nickel Plating)
外模材質(Over-Mold Material)	PA66
絕緣體材質(Insulator Material)	PA66+30%纖
適用線纜規格(Wire Spec1f1cat1ons)	28AWG---16AWG
用線纜外徑(Wire Diameter)	φ4.0 ~ φ7.8
防護等級(Protective Level)	IP67
耐溫環境(Tempreture Env1roment)	-40℃ ~ 125 ℃
插撥次數(Plug/Unplug Durab山ty)	1000
電氣性能(Electrical Property)
額定電流(Rated Current)	10A	4.0A		2.5A
額定電壓(Rated Voltage)	250V	250V		60V
測試電壓(Test Voltage)	1000V	1000V		500V
接觸電阻(Contact Resistance)	10 MΩ	10 MΩ		10 MΩ
絕緣電咀(Insulation Resistance)	200 MΩ	200 MΩ		200 MΩ
